Univerzalni motorni komutator za električna orodja
A collector commutator is a moving part of a rotary electrical switch in electric motors and electrical generators that periodically reverses the current direction between the rotor and the external circuit. It consists of a cylinder composed of multiple metal contact segments on the rotating armature of the machine. The commutator is one component of a motor; there are also two or more stationary electrical contacts called "brushes" made of a soft conductor like carbon that press against the commutator, making sliding contact with successive segments of the commutator as it rotates.
Aplikacija kolektorskega komutatorja
Kolektorski komutatorji se uporabljajo v enosmernih motorjih, generatorjih in univerzalnih motorjih. V motorju komutator uporablja električni tok za navitja. Z obračanjem smeri toka v vrtljivih navitjih vsake polovice obrata se ustvari enakomerna vrtilna sila (navor). V generatorju komutator odvzame tok, ki nastane v navitjih, pri čemer obrne smer toka z vsakim polovičnim obratom in služi kot mehanski usmernik za pretvorbo izmeničnega toka iz navitij v enosmerni enosmerni tok v zunanjem tokokrogu bremena.
Parametri kolektorskega komutatorja
Ime izdelka: | Univerzalni motorni komutator armaturni kolektor |
Material: | baker |
Tip: | Kavelj Komutator |
Premer luknje: | 10 mm |
Zunanji premer: | 23,2 mm |
Višina: | 18 mm |
Rezine | 12P |
MOQ | 10000P |

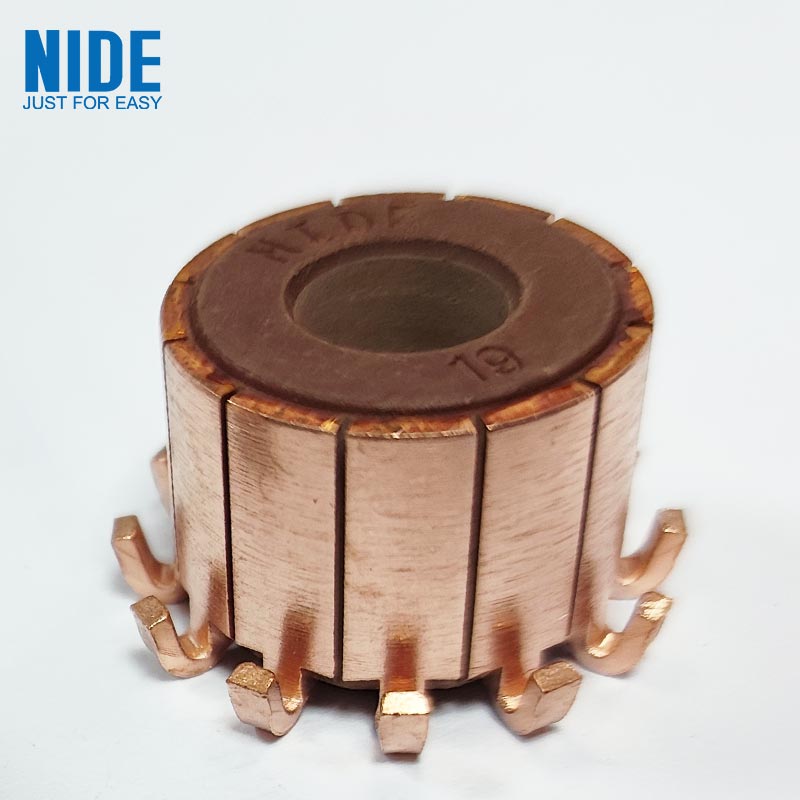

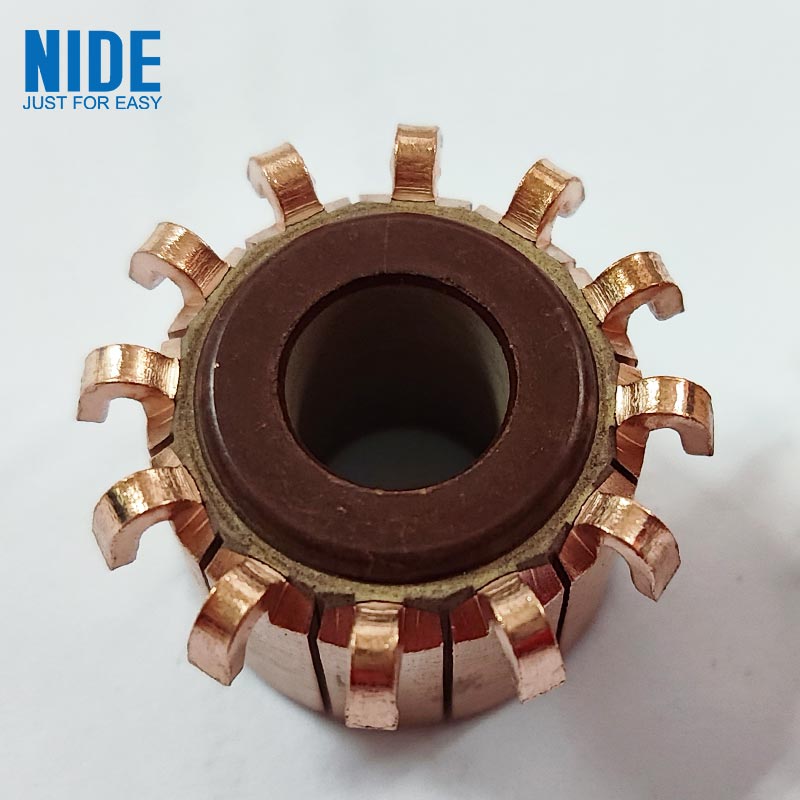

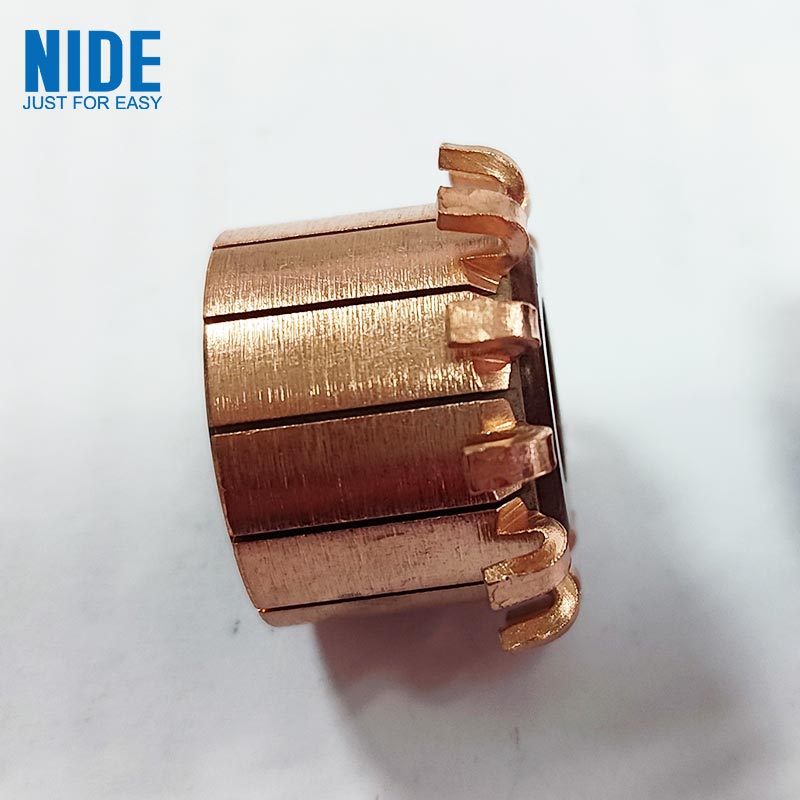

Slika kolektorskega komutatorja
